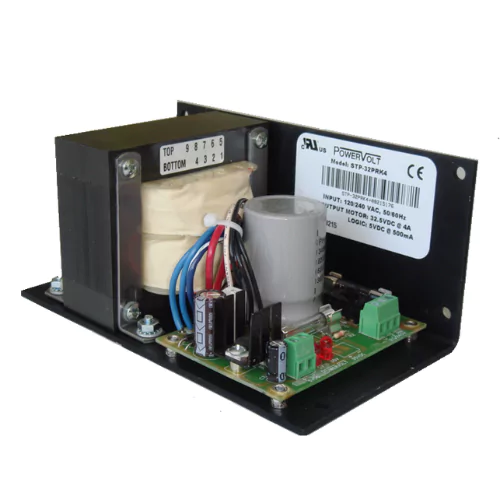

The Power Supply for Stepping Motors
- Fully compatible with Applied Motion Products (and other) stepping motor drivers
- Integral motor (35Vdc) and logic (5Vdc ± 5%) power
- Space saving compact modules provide mounting studs for motor drivers
- Dual 120/240V switch-selectable input voltage
- Power-on LEDs, screw terminal connections
- Ideal for use with A.M.P step motor drivers 1335, 2035, 2035 O, 3535, 3535 O, 3540M or 3540MO
- 2 year warranty
Agency Approval
- UL 1950, Third Edition, File #E181899
- CSA C22.2 No. 950, UL File #E181899
- CE Marked
Specifications
- AC Input: 120/240VAC ±10%, 50/60Hz. Switch selectable. Factory set at 240V input.
- Inrush Current: Estimated 12A at 120V and 15A at 240V
- Connections: Screw terminals
- Storage Temprature: -55°C to +85°C
- Operating Temprature: 0-50°C at full rated load, derate linearly 20% up to 70°C maximum
- Humidity: 95% Non-condensing relative humidity maximum
- Cooling Method: Natural convection; allow unrestricted air flow for optimum operation
- Mounting: 4 each 0.213"dia holes, use #8 or #10 screws; clear anodized chassis
- Logic Power: 5VDC ± 5% @ 500mA, regulated, electronically overload/short circuit protected
- Output:
-
--Motor Power
- STP-35AMP2.5: 35Vdc @ 2.5A Full Load (No Load 42Vdc)
- STP-32AMP4: 32Vdc @ 4.0A Full Load (No Load 42Vdc)
- STP-35AMP5: 35Vdc @ 5.0A Full Load (No Load 42Vdc)
- STP-48AMP5: 48Vdc @ 5.0A Full Load (No Load 42Vdc)
- STP-48AMP10: 48Vdc @ 10.0A Full Load (No Load 42Vdc)
- STP-70AMP5: 70Vdc @ 5.0A Full Load (No Load 42Vdc)
