transformers

Generic Picture - Mounting Style

transformers

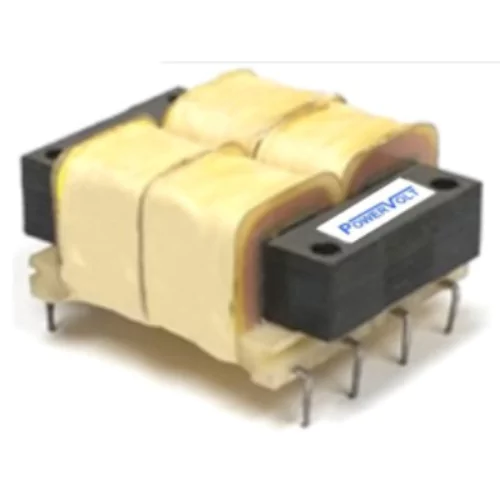

Printed Circuit Mount - Low Profile Econoline
  • Power Rating: 2VA - 48VA
  • Primary Voltage: 115/230 V
  • Frequency: 50/60Hz
  • Secondary Voltage: 5 - 230V
  • Class B Insulation 130°C
  • Hipot - 1500Vrms
  • Low Capacitive Coupling, no Electrostatic Shield Needed
  • Hum-bucking (semi-toroidal) construction
Agency Approval

  • UL/cUL 5085-2 Recognized (File E47299)
  • Insulation File No. E95662
Results : 397
VA Rating
  • 2VA
  • 6VA
  • 12VA
  • 24VA
  • 48VA
Primary Voltage
  • 115/230 V
Secondary Series
  • 10VCT @ 250 mA
  • 10VCT @ 600 mA
  • 10VCT @ 1200 mA
  • 10VCT @ 2.40 A
  • 10VCT @ 4.80 A
  • 12.6VCT @ 200 mA
  • 12.6VCT @ 450 mA
  • 12.6VCT @ 900 mA
  • 12.6VCT @ 1.90 A
  • 12.6VCT @ 3.8 A
  • 16VCT @ 150 mA
  • 16VCT @ 350 mA
  • 16VCT @ 700 mA
  • 16VCT @ 1.50 A
  • 16VCT @ 3.0 A
  • 20VCT @ 125 mA
  • 20VCT @ 300 mA
  • 20VCT @ 600 mA
  • 20VCT @ 1.20 A
  • 20VCT @ 2.40 A
  • 24VCT @ 100 mA
  • 24VCT @ 250 mA
  • 24VCT @ 500 mA
  • 24VCT @ 1.00 mA
  • 24VCT @ 2.00 mA
  • 30VCT @ 85 mA
  • 30VCT @ 200 mA
  • 30VCT @ 400 mA
  • 30VCT @ 800 mA
  • 30VCT @ 1.60 A
  • 34VCT @ 75 mA
  • 34VCT @ 170 mA
  • 34VCT @ 340 mA
  • 34VCT @ 700 mA
  • 34VCT @ 1.40 A
  • 40VCT @ 60 mA
  • 40VCT @ 150 mA
  • 40VCT @ 300 mA
  • 40VCT @ 600 mA
  • 40VCT @ 1.20 A
  • 56VCT @ 45 mA
  • 56VCT @ 100 mA
  • 56VCT @ 200 mA
  • 56VCT @ 425 mA
  • 56VCT @ 850 mA
  • 88VCT @ 28 mA
  • 88VCT @ 65 mA
  • 88VCT @ 130 mA
  • 120VCT @ 20 mA
  • 120VCT @ 50 mA
  • 120VCT @ 100 mA
  • 230VCT @ 10 mA
  • 230VCT @ 25 mA
  • 230VCT @ 50 mA
Secondary Parallel
  • 5V @ 500 mA
  • 5V @ 1.20 A
  • 5V @ 2.40 A
  • 5V @ 4.80 A
  • 5V @ 9.60 A
  • 6.3V @ 400 mA
  • 6.3V @ 900 mA
  • 6.3V @ 1.80 A
  • 6.3V @ 3.80 A
  • 6.3V @ 7.60 A
  • 8V @ 300 mA
  • 8V @ 700 mA
  • 8V @ 1.40 A
  • 8V @ 3.0 A
  • 8V @ 6.0 A
  • 10V @ 250 mA
  • 10V @ 600 mA
  • 10V @ 1.20 A
  • 10V @ 2.40 A
  • 10V @ 4.80 A
  • 12V @ 200 mA
  • 12V @ 500 mA
  • 12V @ 1.0 A
  • 12V @ 2.00 mA
  • 12V @ 4.00 mA
  • 15V @ 170 mA
  • 15V @ 400 mA
  • 15V @ 800 mA
  • 15V @ 1.6 A
  • 15V @ 3.20 A
  • 17V @ 150 mA
  • 17V @ 340 mA
  • 17V @ 680 mA
  • 17V @ 1.40 A
  • 17V @ 2.80 A
  • 20V @ 120 mA
  • 20V @ 300 mA
  • 20V @ 600 mA
  • 20V @ 1.20 A
  • 20V @ 2.40 A
  • 28V @ 90 mA
  • 28V @ 200 mA
  • 28V @ 400 mA
  • 28V @ 850 mA
  • 28V @ 1.70 A
  • 44V @ 56 mA
  • 44V @ 130 mA
  • 44V @ 260 mA
  • 60V @ 40 mA
  • 60V @ 100 mA
  • 60V @ 200 mA
  • 115V @ 20 mA
  • 115V @ 50 mA
  • 115V @ 100 mA
Cannot Find Part Number, Please Click Here:
of 397
Compare Part No. VA Rating Primary Voltage Secondary Series Secondary Parallel UL File No. RoHs Reach Datasheet Quanitity Available Check Price
FZ 10-250 Data 2 Data 3 Data 4 Data 5 Data 6 Data 7 Data 8 Data 9 Data 10 Data 11
Data 1 Data 2 Data 3 Data 4 Data 5 Data 6 Data 7 Data 8 Data 9 Data 10 Data 11
Data 1 Data 2 Data 3 Data 4 Data 5 Data 6 Data 7 Data 8 Data 9 Data 10 Data 11
Data 1 Data 2 Data 3 Data 4 Data 5 Data 6 Data 7 Data 8 Data 9 Data 10 Data 11
Data 1 Data 2 Data 3 Data 4 Data 5 Data 6 Data 7 Data 8 Data 9 Data 10 Data 11
of 397 « 1 2 3 »
