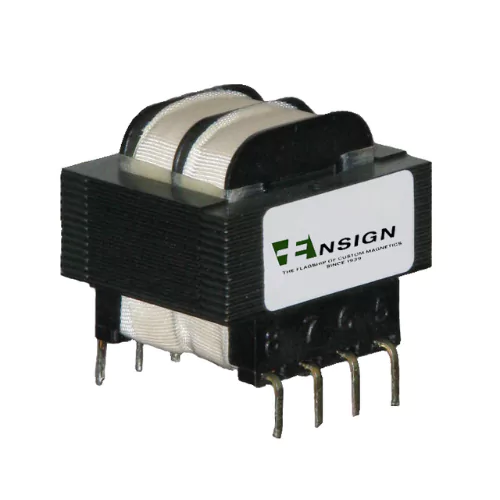

transformers

Generic Picture - Mounting Style

transformers
Printed Circuit Mount - High Performance
  • Flame Retardant, UL 94V0 Rating
  • High Efficiency
  • Power Rating: 1.1VA - 36VA
  • Primary Voltage: 115, 115/230 or 230V
  • Frequency: 50/60Hz
  • Secondary Voltage - 5V to 120V
  • Insulation Material 130°C Standard (Optional 200°C)
  • High Isolation - 2500Vrms
  • Low Capacitive Coupling, no Electrostatic Shield Needed
Agency Approval

  • UL/cUL 5085-2 Recognized (File E47299)
  • UL 1446 Recognized Insulation system (File E95662)
  • UL/cUL 5083-3 Class 2 Recognized (File E43609)
Results : 397
VA Rating
  • 1.1VA
  • 2.4VA
  • 6.0VA
  • 12VA
  • 20VA
  • 36VA
Primary Voltage
  • 115 V
  • 115/230 V
  • 230 V
Secondary Series
  • 10VCT @ 0.11A
  • 10VCT @ 0.25A
  • 10VCT @ 0.6A
  • 10VCT @ 1.2A
  • 10VCT @ 2.0A
  • 10VCT @ 3.6A
  • 12.6VCT @ 0.09A
  • 12.6VCT @ 0.2A
  • 12.6VCT @ 0.5A
  • 12.6VCT @ 0.9A
  • 12.6VCT @ 1.6A
  • 12.6VCT @ 2.85A
  • 16VCT @ 0.07A
  • 16VCT @ 0.15A
  • 16VCT @ 0.4A
  • 16VCT @ 0.8A
  • 16VCT @ 1.25A
  • 16VCT @ 2.25A
  • 20VCT @ 0.055A
  • 20VCT @ 0.12A
  • 20VCT @ 0.3A
  • 20VCT @ 0.6A
  • 20VCT @ 1.0A
  • 20VCT @ 1.8A
  • 24V @ 0.045A
  • 24V @ 0.1A
  • 24V @ 0.25A
  • 24V @ 0.5A
  • 24V @ 0.8A
  • 24V @ 1.5A
  • 28VCT @ 0.04A
  • 28VCT @ 0.085A
  • 28VCT @ 0.2A
  • 28VCT @ 0.42A
  • 28VCT @ 0.7A
  • 28VCT @ 1.3A
  • 36VCT @ 0.03A
  • 36VCT @ 0.065A
  • 36VCT @ 0.17A
  • 36VCT @ 0.35A
  • 36VCT @ 0.55A
  • 36VCT @ 1.0A
  • 48VCT @ 0.023A
  • 48VCT @ 0.05A
  • 48VCT @ 0.125A
  • 48VCT @ 0.25A
  • 48VCT @ 0.4A
  • 48VCT @ 0.75A
  • 56VCT @ 0.02A
  • 56VCT @ 0.045A
  • 56VCT @ 0.11A
  • 56VCT @ 0.22A
  • 56VCT @ 0.35A
  • 56VCT @ 0.65A
  • 120VCT @ 0.01A
  • 120VCT @ 0.02A
  • 120VCT @ 0.05A
  • 120VCT @ 0.1A
  • 120VCT @ 0.16A
  • 120VCT @ 0.3A
Secondary Parallel
  • 5V @ 0.22A
  • 5V @ 0.5A
  • 5V @ 1.2A
  • 5V @ 2.4A
  • 5V @ 4.0A
  • 5V @ 7.2A
  • 6.3V @ 0.18A
  • 6.3V @ 0.4A
  • 6.3V @ 1.0A
  • 6.3V @ 2.0A
  • 6.3V @ 3.2A
  • 6.3V @ 5.7A
  • 8V @ 0.14A
  • 8V @ 0.3A
  • 8V @ 0.8A
  • 8V @ 1.6A
  • 8V @ 2.5A
  • 8V @ 4.5A
  • 10V @ 0.11A
  • 10V @ 0.24A
  • 10V @ 0.6A
  • 10V @ 1.2A
  • 10V @ 2.0A
  • 10V @ 3.6A
  • 12V @ 0.09A
  • 12V @ 0.2A
  • 12V @ 0.5A
  • 12V @ 1.0A
  • 12V @ 1.6A
  • 12V @ 3.0A
  • 14V @ 0.08A
  • 14V @ 0.17A
  • 14V @ 0.4A
  • 14V @ 0.84A
  • 14V @ 1.4A
  • 14V @ 2.6A
  • 18V @ 0.06A
  • 18V @ 0.13A
  • 18V @ 0.34A
  • 18V @ 0.7A
  • 18V @ 1.1A
  • 18V @ 2.0A
  • 24V @ 0.046A
  • 24V @ 0.1A
  • 24V @ 0.25A
  • 24V @ 0.5A
  • 24V @ 0.8A
  • 24V @ 1.5A
  • 28V @ 0.04A
  • 28V @ 0.085A
  • 28V @ 0.2A
  • 28V @ 0.42A
  • 28V @ 0.7A
  • 28V @ 1.3A
  • 60V @ 0.02A
  • 60V @ 0.04A
  • 60V @ 0.1A
  • 60V @ 0.2A
  • 60V @ 0.32A
  • 60V @ 0.6A
Cannot Find Part Number, Please Click Here:
of 397
Compare Part No. VA Rating Primary Voltage Secondary Series Secondary Parallel UL File No. RoHs Reach Datasheet Quanitity Available Check Price
P001-1-010X* Data 2 Data 3 Data 4 Data 5 Data 6 Data 7 Data 8 Data 9 Data 10 Data 11
Data 1 Data 2 Data 3 Data 4 Data 5 Data 6 Data 7 Data 8 Data 9 Data 10 Data 11
Data 1 Data 2 Data 3 Data 4 Data 5 Data 6 Data 7 Data 8 Data 9 Data 10 Data 11
Data 1 Data 2 Data 3 Data 4 Data 5 Data 6 Data 7 Data 8 Data 9 Data 10 Data 11
Data 1 Data 2 Data 3 Data 4 Data 5 Data 6 Data 7 Data 8 Data 9 Data 10 Data 11
of 397 « 1 2 3 »
