transformers

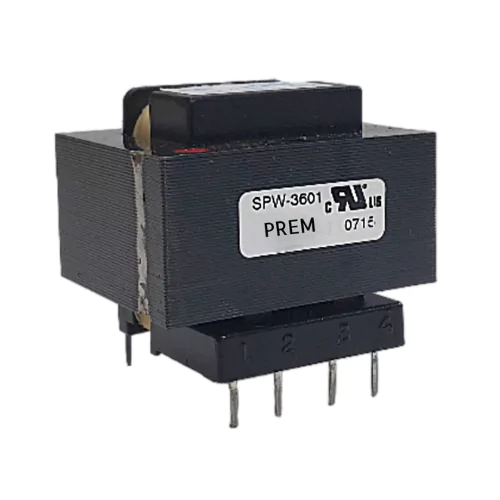

Generic Picture - Mounting Style

transformers
Printed Circuit Mount - Shrouded Primary
  • Flame Retardant - UL 94V0 Rating
  • Power Rating: 2.5VA - 20VA
  • Primary Voltage: 115/230 V
  • Frequency: 50/60Hz
  • Secondary Voltage: 5 - 36V
  • Insulation Material 130°C Standard
  • High Isolation - 4500Vrms
  • Coated to resist dust and moisture
Agency Approval

  • UL 5085-3 Class 2 or Class 3 for U.S. & Canada (File E49606)
    or CSA File 063944
  • UL 1446 Recognized Class B (130°C) Insulation System, File E95662
Results : 397
VA Rating
  • 2.5VA
  • 5VA
  • 10VA
  • 12VA
  • 20VA
Primary Voltage
  • 115/230 V
Series Secondary
  • 10VCT @ 0.25 A
  • 12.6VCT @ 0.2 A
  • 16VCT @ 0.15 A
  • 20VCT @ 0.12 A
  • 24VCT @ 0.1 A
  • 28VCT @ 0.09 A
  • 36V CT @ 0.07 A
  • 10VCT @ 0.5 A
  • 12.6VCT @ 0.4 A
  • 16VCT @ 0.31 A
  • 20VCT @ 0.25 A
  • 24VCT @ 0.21 A
  • 28VCT @ 0.18 A
  • 36VCT @ 0.14 A
  • 10VCT @ 1.0 A
  • 12.6VCT @ 0.8 A
  • 16VCT @ 0.62 A
  • 20VCT @ 0.5 A
  • 24VCT @ 0.42 A
  • 28VCT @ 0.36 A
  • 36VCT @ 0.28 A
  • 10VCT @ 1.2 A
  • 12.6VCT @ 1.0 A
  • 16VCT @ 0.8 A
  • 20VCT @ 0.6 A
  • 24VCT @ 0.5 A
  • 28VCT @ 0.425 A
  • 36VCT @ 0.35 A
  • 48VCT @ 0.25 A
  • 56VCT @ 0.22 A
  • 120VCT @ 0.1 A
  • 10VCT @ 2.0 A
  • 12.6VCT @ 1.6 A
  • 16VCT @ 1.25 A
  • 20VCT @ 1.0 A
  • 24VCT @ 0.83 A
  • 28VCT @ 0.72 A
  • 36VCT @ 0.56 A
Parallel Secondary
  • 5V @ 0.5 A
  • 6.3V @ 0.4 A
  • 8V @ 0.3 A
  • 10V @ 0.24 A
  • 12V @ 0.2 A
  • 14V @ 0.18 A
  • 18V @ 0.14 A
  • 5V @ 1.0 A
  • 6.3V @ 0.8 A
  • 8V @ 0.62 A
  • 10V @ 0.5 A
  • 12V @ 0.42 A
  • 14V @ 0.36 A
  • 18V @ 0.28 A
  • 5V @ 2.0 A
  • 6.3V @ 1.6 A
  • 8V @ 1.25 A
  • 10V @ 1.0 A
  • 12V @ 0.84 A
  • 14V @ 0.72 A
  • 18V @ 0.56 A
  • 5V @ 2.4 A
  • 6.3V @ 2.0 A
  • 8V @ 1.6 A
  • 10V @ 1.2 A
  • 12V @ 1.0 A
  • 14V @ 0.85 A
  • 18V @ 0.7 A
  • 24V @ 500 A
  • 28V @ 0.44 A
  • 60V @ 0.2 A
  • 5V @ 4.0 A
  • 6.3V @ 3.2 A
  • 8V @ 2.5 A
  • 10V @ 2.0 A
  • 12V @ 1.66 A
  • 14V @ 1.44 A
  • 18V @ 1.12 A
Cannot Find Part Number, Please Click Here:
of 397
Compare Part No. VA Rating Primary Voltage Secondary Series Secondary Parallel Class UL File No. RoHs Reach Datasheet Quanitity Available Check Price
SPW-1000 Data 2 Data 3 Data 4 Data 5 Class 2 Data 7 Data 8 Data 9 Data 10 Data 11
SPW-1001 Data 2 Data 3 Data 4 Data 5 Class 2 Not Wet, Class 3 Wet Data 7 Data 8 Data 9 Data 10 Data 11
SPW-1002 Data 2 Data 3 Data 4 Data 5 Class 2 Not Wet, Class 3 Wet Data 7 Data 8 Data 9 Data 10 Data 11
SPW-1003 Data 2 Data 3 Data 4 Data 5 Class 2 Not Wet, Class 3 Wet Data 7 Data 8 Data 9 Data 10 Data 11
SPW-1004 Data 2 Data 3 Data 4 Data 5 Class 3 Data 7 Data 8 Data 9 Data 10 Data 11
Data 1 Data 2 Data 3 Data 4 Data 5 Data 6 Data 7 Data 8 Data 9 Data 10 Data 11
Data 1 Data 2 Data 3 Data 4 Data 5 Data 6 Data 7 Data 8 Data 9 Data 10 Data 11
of 397 « 1 2 3 »
