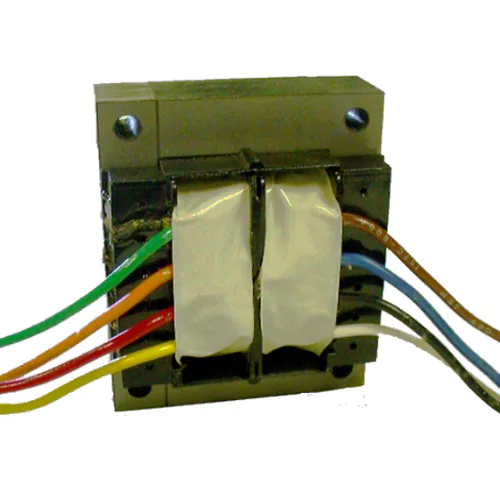

chassis-mount

Generic Picture - Mounting Style

chassis-mount
Lead Wire - Panel Mount
  • Power Rating: 2.5VA - 56VA
  • Primary Voltage: 115, 115/230, 230 V
  • Frequency: 50/60Hz
  • Secondary Voltage: 5 - 36V
  • Insulation Material 130°C Standard
  • High Isolation - 4000Vrms
  • Optional Internal Current or Thermal Protector
  • Color Coded Lead Wires
Agency Approval

  • UL/cUL 5085-2 Recognized (File E47299)
  • UL 60950 Recognized (File E144070)
  • UL 1446 Recognized Insulation System (E95662)
Results : 397
VA Rating
  • 2.5VA
  • 5VA
  • 10VA
  • 20VA
  • 30VA
  • 56VA
Primary Voltage
  • 115 V
  • 115/230 V
  • 230 V
Secondary Series
  • 10VCT @ 0.25A
  • 10VCT @ 0.50A
  • 10VCT @ 1.0A
  • 10VCT @ 2.0A
  • 10VCT @ 3.0A
  • 10VCT @ 5.6A
  • 12.6VCT @ 0.20A
  • 12.6VCT @ 0.40A
  • 12.6VCT @ 0.80A
  • 12.6VCT @ 1.6A
  • 12.6VCT @ 2.4A
  • 12.6VCT @ 4.4A
  • 16VCT @ 0.15A
  • 16VCT @ 0.31A
  • 16VCT @ 0.62A
  • 16VCT @ 1.25A
  • 16VCT @ 1.9A
  • 16VCT @ 3.5A
  • 20VCT @ 0.12A
  • 20VCT @ 0.25A
  • 20VCT @ 0.50A
  • 20VCT @ 1.0A
  • 20VCT @ 1.5A
  • 20VCT @ 2.8A
  • 24VCT @ 0.10A
  • 24VCT @ 0.21A
  • 24VCT @ 0.42A
  • 24VCT @ 0.83A
  • 24VCT @ 1.25A
  • 24VCT @ 2.33A
  • 28VCT @ 0.09A
  • 28VCT @ 0.18A
  • 28VCT @ 0.36A
  • 28VCT @ 0.72A
  • 28VCT @ 1.06A
  • 28VCT @ 2.0A
  • 36VCT @ 0.07A
  • 36VCT @ 0.14A
  • 36VCT @ 0.28A
  • 36VCT @ 0.56A
  • 36VCT @ 0.82A
  • 36VCT @ 1.56A
Secondary Parallel
  • 5V @ 0.50A
  • 5V @ 1.0A
  • 5V @ 2.0A
  • 5V @ 4.0A
  • 5V @ 6.0A
  • 5V @ 11.2A
  • 6.3V @ 0.40A
  • 6.3V @ 0.80A
  • 6.3V @ 1.60A
  • 6.3V @ 3.2A
  • 6.3V @ 4.8A
  • 6.3V @ 8.8A
  • 8V @ 0.30A
  • 8V @ 0.62A
  • 8V @ 1.25A
  • 8V @ 2.5A
  • 8V @ 3.8A
  • 8V @ 7.0A
  • 10V @ 0.24A
  • 10V @ 0.50A
  • 10V @ 1.0A
  • 10V @ 2.0A
  • 10V @ 3.0A
  • 10V @ 5.6A
  • 12V @ 0.20A
  • 12V @ 0.42A
  • 12V @ 0.84A
  • 12V @ 1.66A
  • 12V @ 2.5A
  • 12V @ 4.66A
  • 14V @ 0.18A
  • 14V @ 0.36A
  • 14V @ 0.72A
  • 14V @ 1.44A
  • 14V @ 2.12A
  • 14V @ 4.0A
  • 18V @ 0.14A
  • 18V @ 0.28A
  • 18V @ 0.56A
  • 18V @ 1.12A
  • 18V @ 1.64A
  • 18V @ 3.12A
Cannot Find Part Number, Please Click Here:
of 397
Compare Part No. VA Rating Primary Voltage Secondary Series Secondary Parallel UL File No. RoHs Datasheet Quanitity Available Check Price
IL002-1-010X Data 2 Data 3 Data 4 Data 5 Data 6 Data 7 Data 8 Data 9 Data 10
Data 1 Data 2 Data 3 Data 4 Data 5 Data 6 Data 7 Data 8 Data 9 Data 10
Data 1 Data 2 Data 3 Data 4 Data 5 Data 6 Data 7 Data 8 Data 9 Data 10
Data 1 Data 2 Data 3 Data 4 Data 5 Data 6 Data 7 Data 8 Data 9 Data 10
Data 1 Data 2 Data 3 Data 4 Data 5 Data 6 Data 7 Data 8 Data 9 Data 10
of 397 « 1 2 3 »
