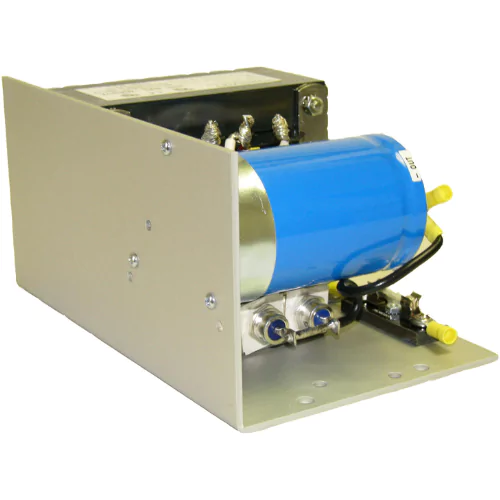

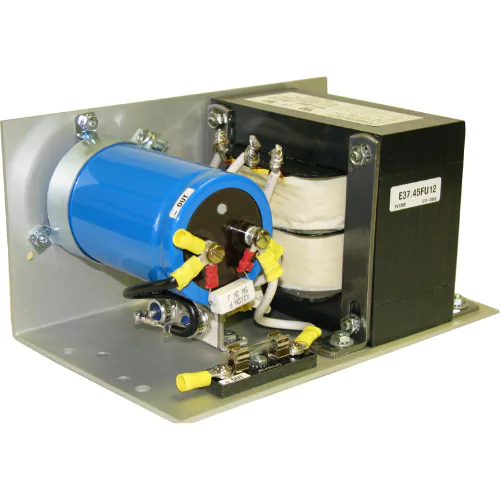

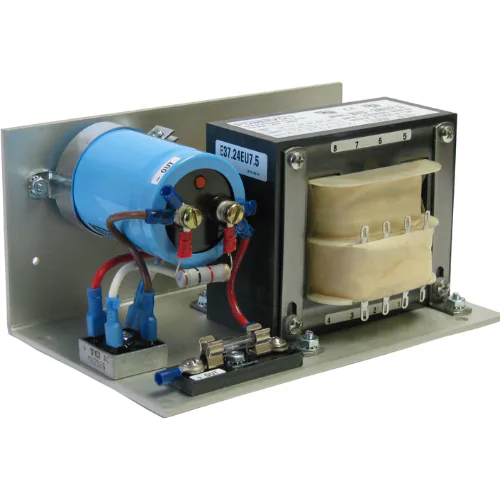

DC Unregulated Power Supplies
- Low cost unregulated DC power supplies
- Field selectable input taps
103/115/126/207/230/253 VAC - Improved ripple -3% maximum
- Fuse protected output
- Computer grade capacitors
- Floating output provides versatility for wiring
- 2 year warranty
Agency Approval
- UL 1950, Third Edition, File #E181899
- CSA C22.2 No. 950, UL File #E181899
- CE Marked
Specifications
- AC Input: 115/230VAC, 50/60 Hz nominal. Field selectable taps for ±10%. High line tolerance on voltage is +10%
- DC Output: Floating fixed output at full load ratings. transformer taps provided for approx. 10% output voltage adjustment
- Ripple: 3% r.m.s. maximum at nominal line and full rated load
- Operating Temprature: 0-50°C(Derate 2% per °C to 70°C)
- Overload and Short Circuit Protection: Fused output. It should be noted that the fuse is not necessarily direct in line with the output. In most models the fuse is prior to the output capacitor and in case of a short circuit, the capacitor energy will be discharged into the load even if the fuse has opened.
of 397
| Compare | Part No. | Case Size | Output | UL File No. | RoHs | Datasheet | Quanitity Available | Check Price |
|---|---|---|---|---|---|---|---|---|
| BVU-7U1.8 | Data 2 | Data 3 | Data 4 | Data 5 | Data 6 | Data 7 | Data 8 | |
| Data 1 | Data 2 | Data 3 | Data 4 | Data 5 | Data 6 | Data 7 | Data 8 | |
| Data 1 | Data 2 | Data 3 | Data 4 | Data 5 | Data 6 | Data 7 | Data 8 |
