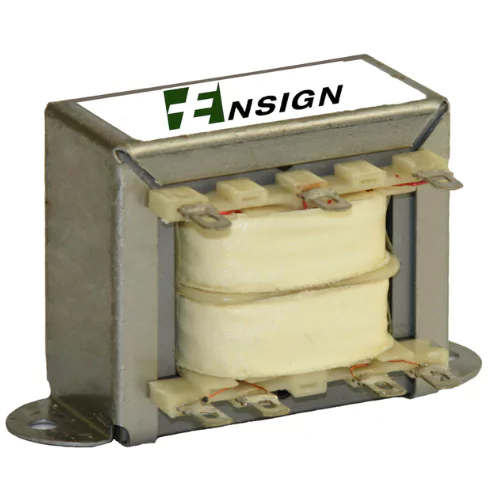

transformers

Generic Picture - Mounting Style

transformers
Quick Connect - General Purpose
  • Power Rating: 2.4VA - 12VA
  • Primary Voltage: 24 V
  • Frequency: 60Hz
  • Secondary Voltage: 10 - 28V
  • Insulation Material 130°C Standard
  • High Isolation - 2500Vrms
  • Coated to resist dust and moisture
Agency Approval

  • UL/cUL 5085-2 General Purpose Construction
  • UL 1446 Recognized Class B (130oC) Insulation System
    (File E95662)
Results : 397
VA Rating
  • 2.4VA
  • 6VA
  • 12VA
Primary Voltage
  • 24 V
Secondary Series
  • 10VCT @0.25A
  • 12.6VCT @ 0.200A
  • 16VCT @ 0.150A
  • 20VCT @ 0.120A
  • 24VCT @ 0.100A
  • 28VCT @ 0.085A
  • 10VCT @ 0.600A
  • 12.6VCT @ 0.500A
  • 16VCT @ 0.400A
  • 20VCT @ 0.300A
  • 24VCT @ 0.250A
  • 28VCT @ 0.200A
  • 10VCT @ 1.20A
  • 12.6VCT @ 1.00A
  • 16VCT @ 0.80A
  • 20VCT @ 0.60A
  • 24VCT @ 0.50A
  • 28VCT @ 0.42A
Secondary Parallel
  • -
  • 10VCT @ 0.600A
  • 6.3v @ 1.00A
  • 8V @ 0.80A
  • 10V @ 0.60A
  • 12V @ 0.50A
  • 14V @ 0.40A
  • 5V @ 2.40A
  • 6.3V @ 2.00A
  • 8V @ 1.6A
  • 10V @ 1.20A
  • 12V @ 1.00A
  • 14V @ 0.84A
Cannot Find Part Number, Please Click Here:
of 397
Compare Part No. VA Rating Primary Voltage Secondary Series Secondary Parallel UL File No. RoHs Reach Datasheet Quanitity Available Check Price
CSLP-24-400 Data 2 Data 3 Data 4 Data 5 Data 6 Data 7 Data 8 Data 9 Data 10 Data 11
Data 1 Data 2 Data 3 Data 4 Data 5 Data 6 Data 7 Data 8 Data 9 Data 10 Data 11
Data 1 Data 2 Data 3 Data 4 Data 5 Data 6 Data 7 Data 8 Data 9 Data 10 Data 11
Data 1 Data 2 Data 3 Data 4 Data 5 Data 6 Data 7 Data 8 Data 9 Data 10 Data 11
Data 1 Data 2 Data 3 Data 4 Data 5 Data 6 Data 7 Data 8 Data 9 Data 10 Data 11
of 397 « 1 2 3 »
