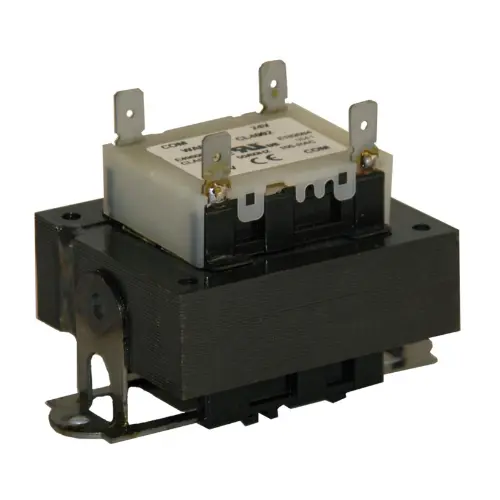

Generic Picture - Mounting Style

class2
Class 2 - Inherently Limited
  • Power Rating : 5VA to 96VA
  • Primary Voltage : 100V - 575 V
  • Secondary Voltage : 24, 12/24 V
  • Frequency 50/60Hz
  • No secondary fusing required
  • Insulation Class F (155°C)
  • Multi voltage combinations are available - consult factory
Agency Approval
  • UL/cUL 5085-3 Class 2 Recognized
  • (UL File E49606 & ETL Report 100920584CHI-001)
  • Insulation File No.E95662
Results : 397
VA Rating
  • 5VA
  • 6VA
  • 10VA
  • 15VA
  • 20VA
  • 30VA
  • 40VA
  • 50VA
Core Size(Inches)
  • 40E - 7/8 * 7/8(Standard Size)
  • 40V - 3/4 * 1 1/4(Medium Size)
  • 40VM - 3/4 * 1.0(Compact Size)
  • 3/4 * 1/2
  • 1/2 * 1/2
  • 3/4 * 5/8
  • 3/4 * 1.0
  • 3/4 * 1 1/4
  • 7/8 * 7/8
  • 7/8 * 1 1/4
  • 1.0 * 1.0
  • 1.0 * 1 1/2
Primary Voltage
  • 208/230V
  • 120V
  • 277V
  • 120/208/240V
  • 480V
  • 120/208/240/480V
  • 600V
  • 120/240V
  • 277/380/575V
  • 380V
  • 240V
  • 277/380/415/480V
  • 208/240V
  • 415V
  • 380/415V
  • 575V
  • 215/230V
  • 208/240/277V
  • 240/480V
  • 380/415/575V
  • 460V
  • 480/575V
  • 200/230V
  • 120/208/240/277V
  • 115V
  • 230V
  • 120/277V
  • 208/277/480V
  • 277/380/415V
  • 208/240/480V
  • 208V
  • 460/575V
  • 220/240V
  • 100V
  • 220V
  • 208/240V
  • 265V
  • 346V
  • 208/230/460V
  • 400V
  • 575/600V
  • 120/208/277/575V
  • 200/230/460
  • 230/460V
  • 380/460V
  • 115/230V
  • 240/277/480V
Secondary Voltage
  • 24V
  • 12/24V
Mounting Type
  • HX = Foot Mount, Horizontal, Opposite Side Leads
  • HS = Foot Mount, Horizontal, Same Side Leads
  • HD = Foot Mount, Horizontal, Leads Diagonal Side
  • VX = Foot Mount, Vertical, Opposite Side Leads
  • VS = Foot Mount, Vertical, Same Side Leads
  • VD = Foot Mount, Vertical, Leads Diagonal Side
  • GX = Panel Mount, Opposite Side Leads
  • GS = Panel Mount, Same Side Leads
  • BC = 4 Foot, Screw/Leads
  • AE = Lay Down, Pri & Sec on Top Side
  • BB = Foot Mount, Pri & Sec on Same Side
  • AB = Foot Mount, Pri & Sec on Opposite Side
Lead Wire/Terminal Size
  • Lead Wire - 12 Inch (Total length)
  • 1 = Primary with 3/16, Secondary with 1/4
  • 2 = All 1/4
  • 3 = Primary with 1/4, Secondary with 3/16
  • 4 = All 3/16
Fusing
  • N = No Fuse Required
Cannot Find Part Number, Please Click Here:
of 397
Compare Part No. VA Rating Core Size(Inches) Primary Voltage Secondary Voltage Mounting Style Termination/ Lead UL File No. RoHs Reach Datasheet Quanitity Available Check Price
CL05X00-0CT* Data 2 Data 3 Data 4 Data 5 Data 6 Data 7 Data 8 Data 9 Data 10 Data 11 Data 12 Data 13
Data 1 Data 2 Data 3 Data 4 Data 5 Data 6 Data 7 Data 8 Data 9 Data 10 Data 11 Data 12 Data 13
Data 1 Data 2 Data 3 Data 4 Data 5 Data 6 Data 7 Data 8 Data 9 Data 10 Data 11 Data 12 Data 13
Data 1 Data 2 Data 3 Data 4 Data 5 Data 6 Data 7 Data 8 Data 9 Data 10 Data 11 Data 12 Data 13
Data 1 Data 2 Data 3 Data 4 Data 5 Data 6 Data 7 Data 8 Data 9 Data 10 Data 11 Data 12 Data 13
of 397 « 1 2 3 »
